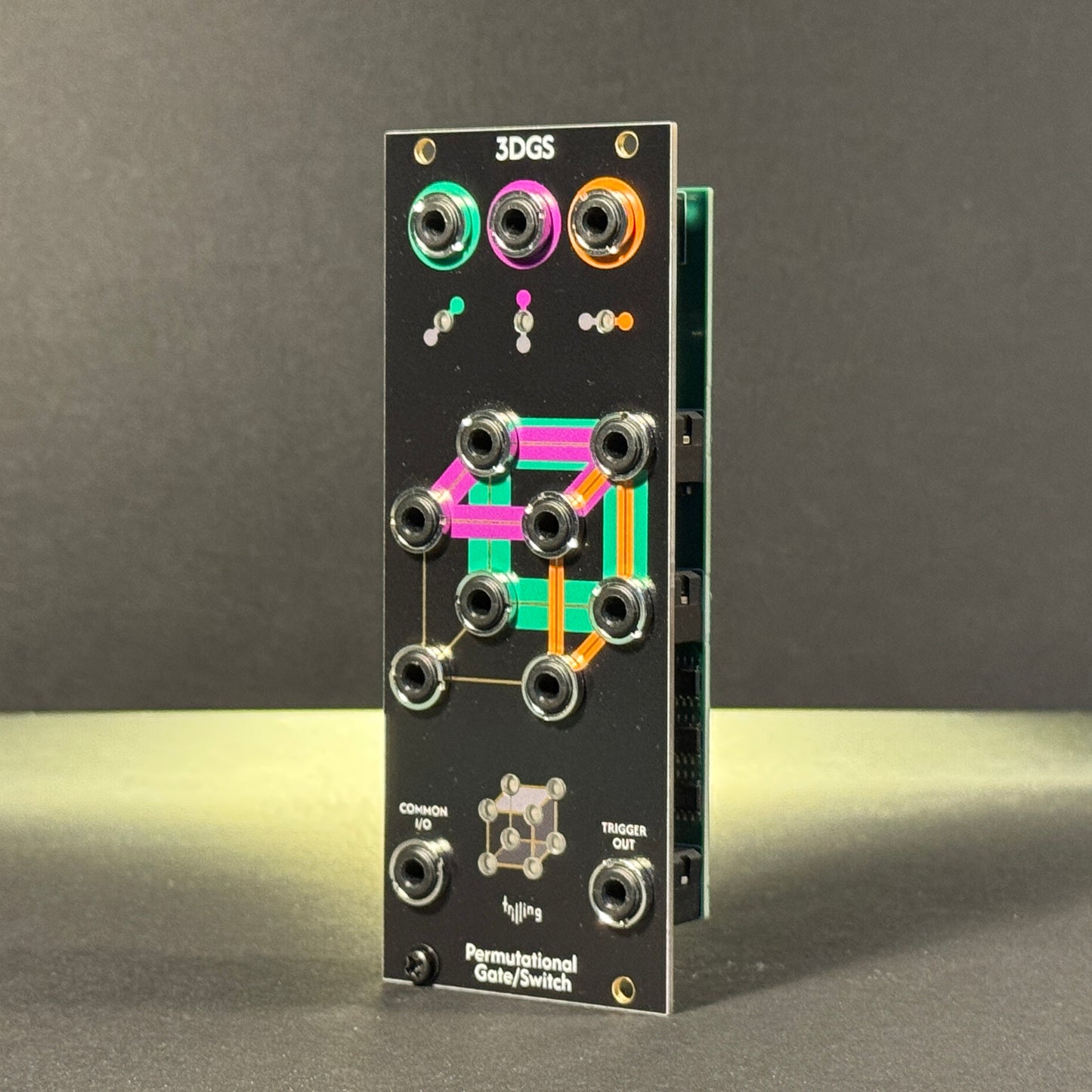

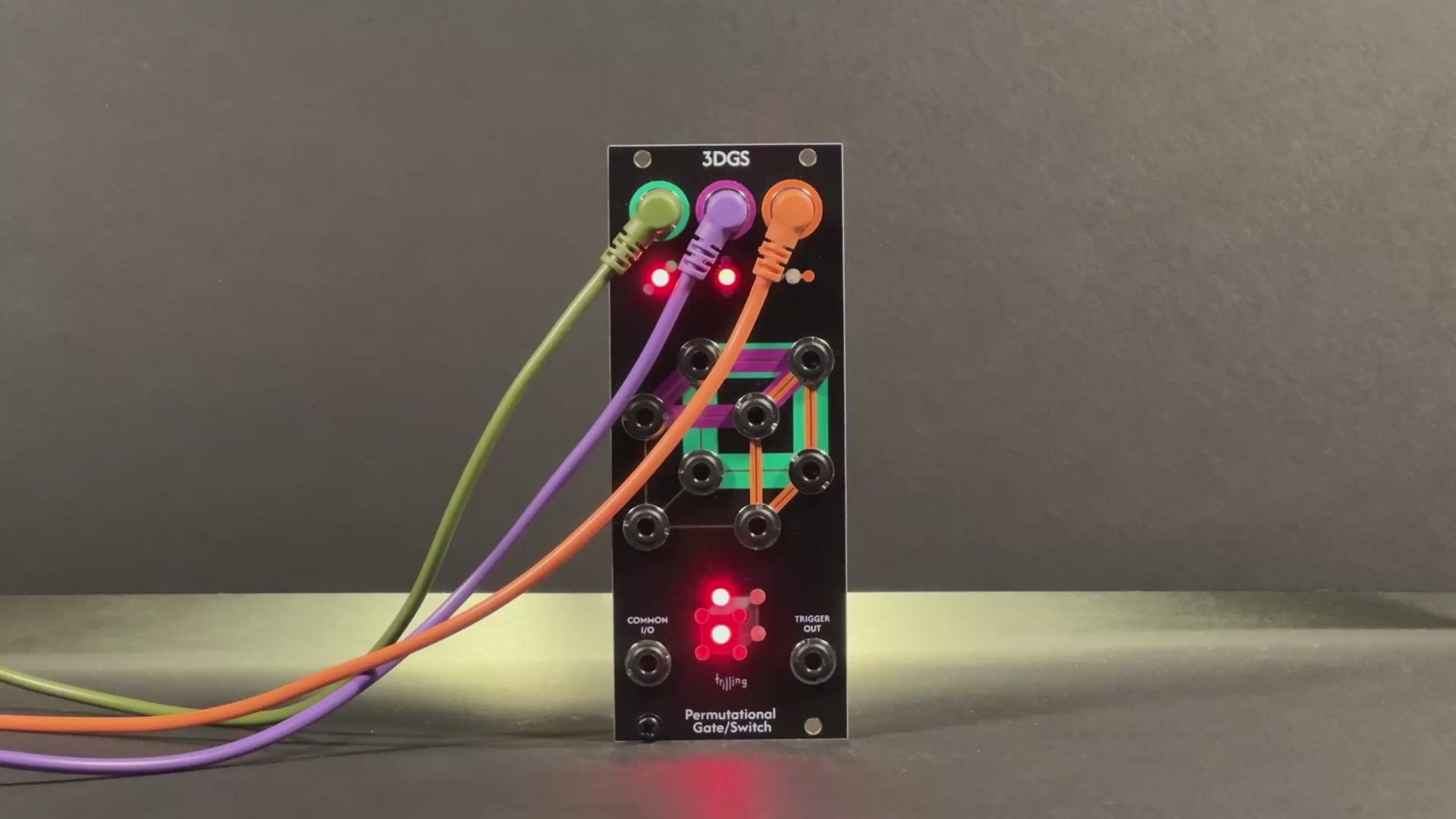

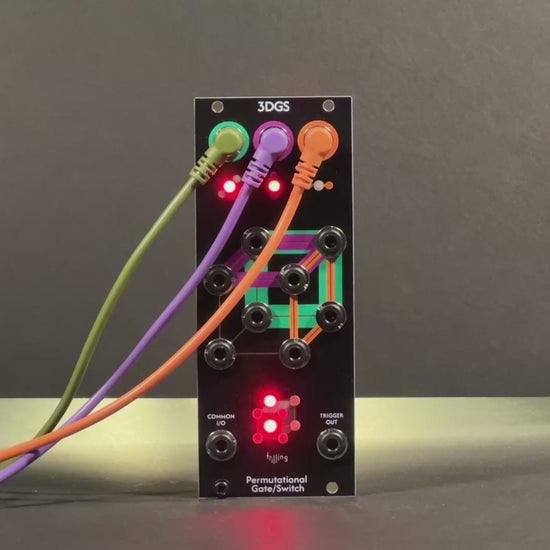

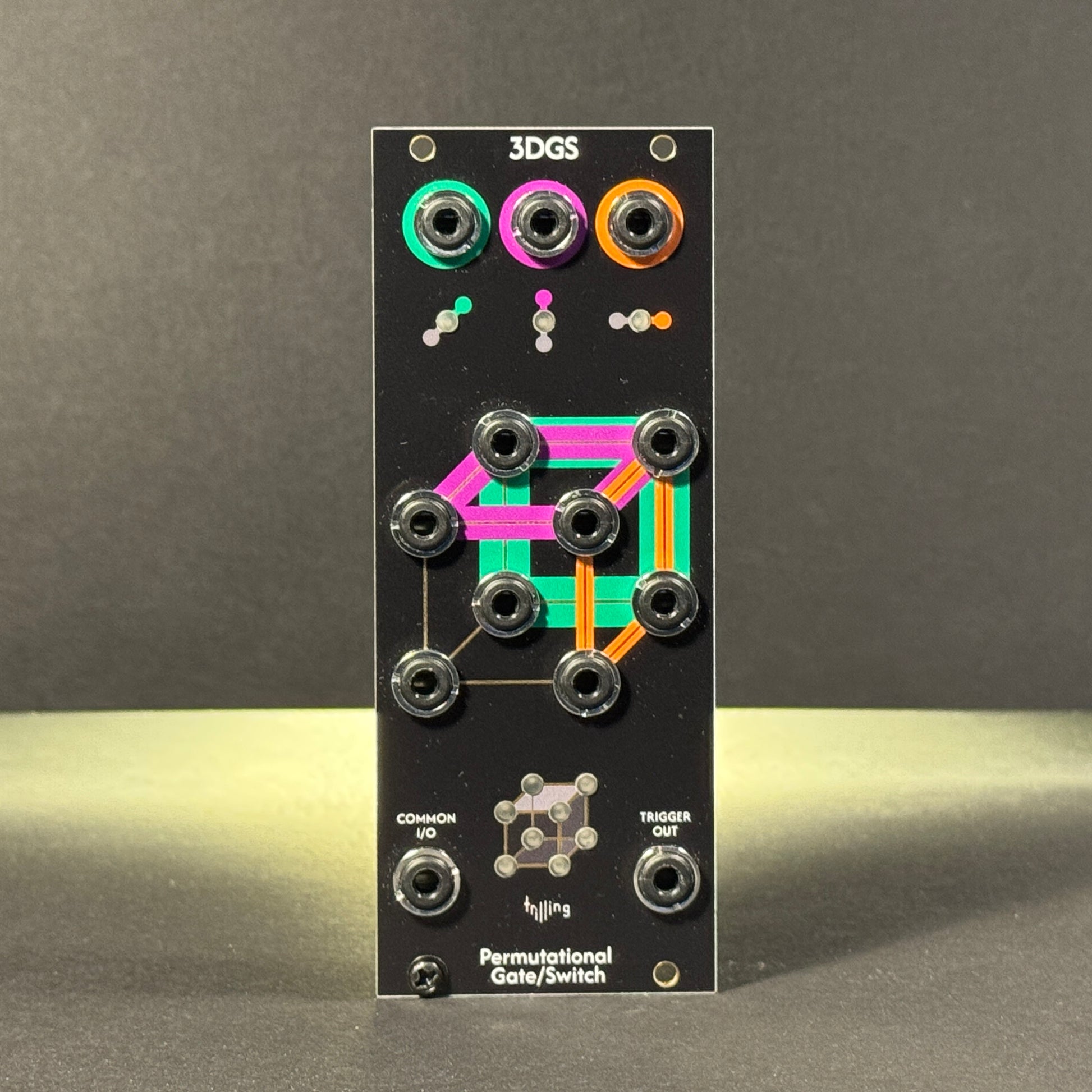

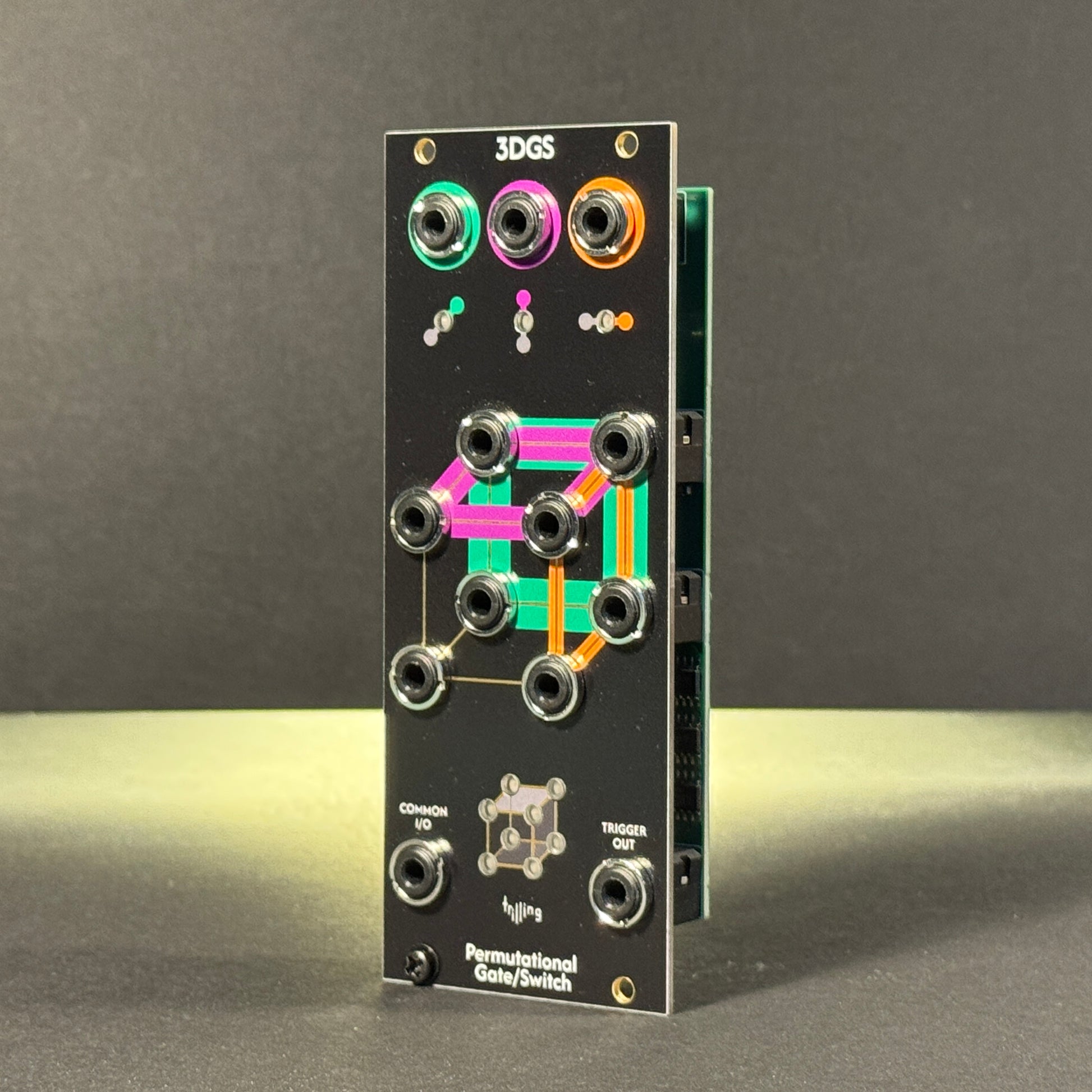

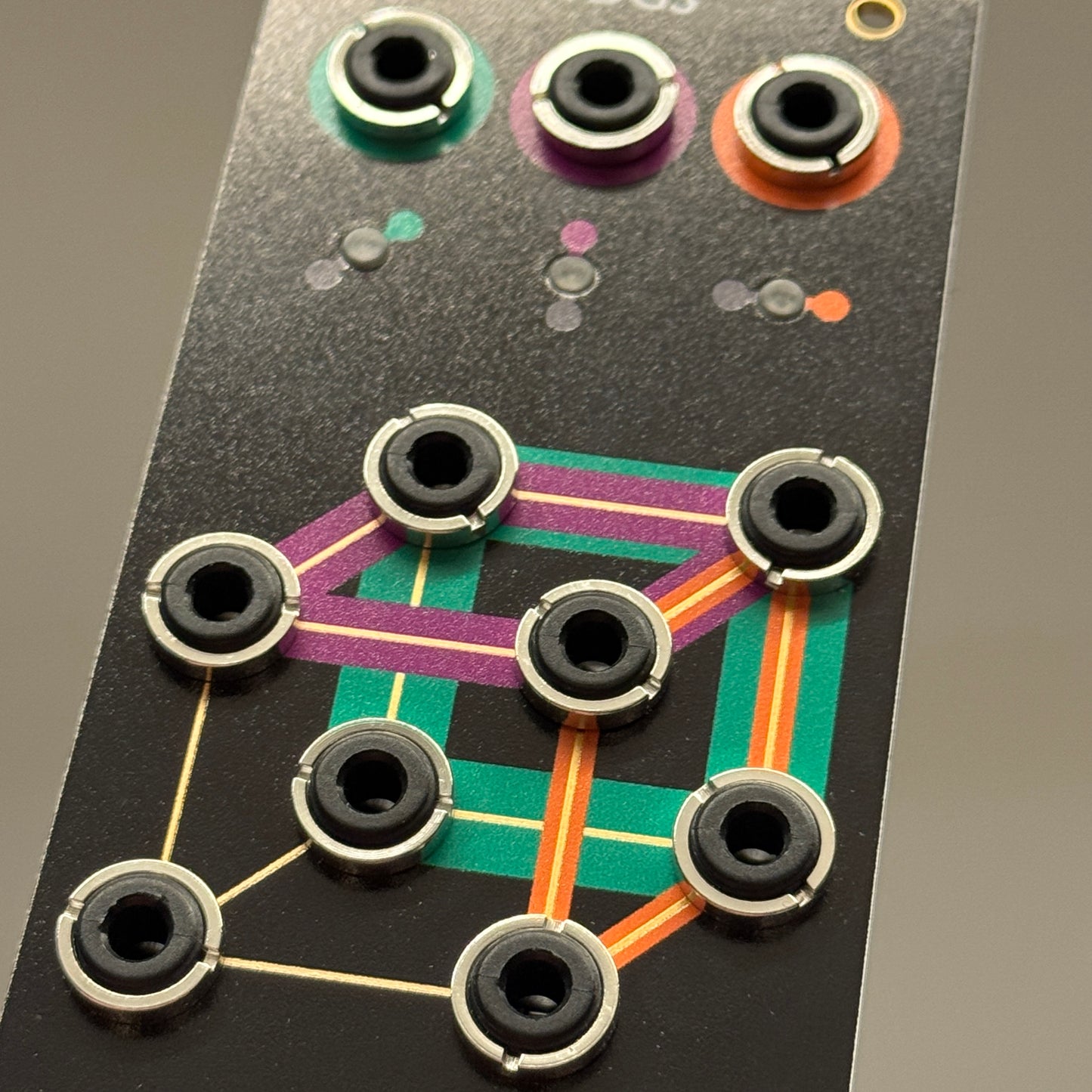

3DGS - Permutational Gate/Switch

Analog 1:8 switch controlled by 3 gates.

Works in both directions to switch gates, control voltages or audio signals. Three control gates combine into a binary number to determine the active input/output. When nothing is connected to the common i/o, the active output will be high (5V).

Tech specs:

• Width 10hp (50.8mm)
• Depth 33mm (including power cable)
• Universal 10/16 pin Eurorack power connector (16 pin cable included)
• Standard 3.5mm TS jacks

• Power 35mA 12V, <1mA -12V
