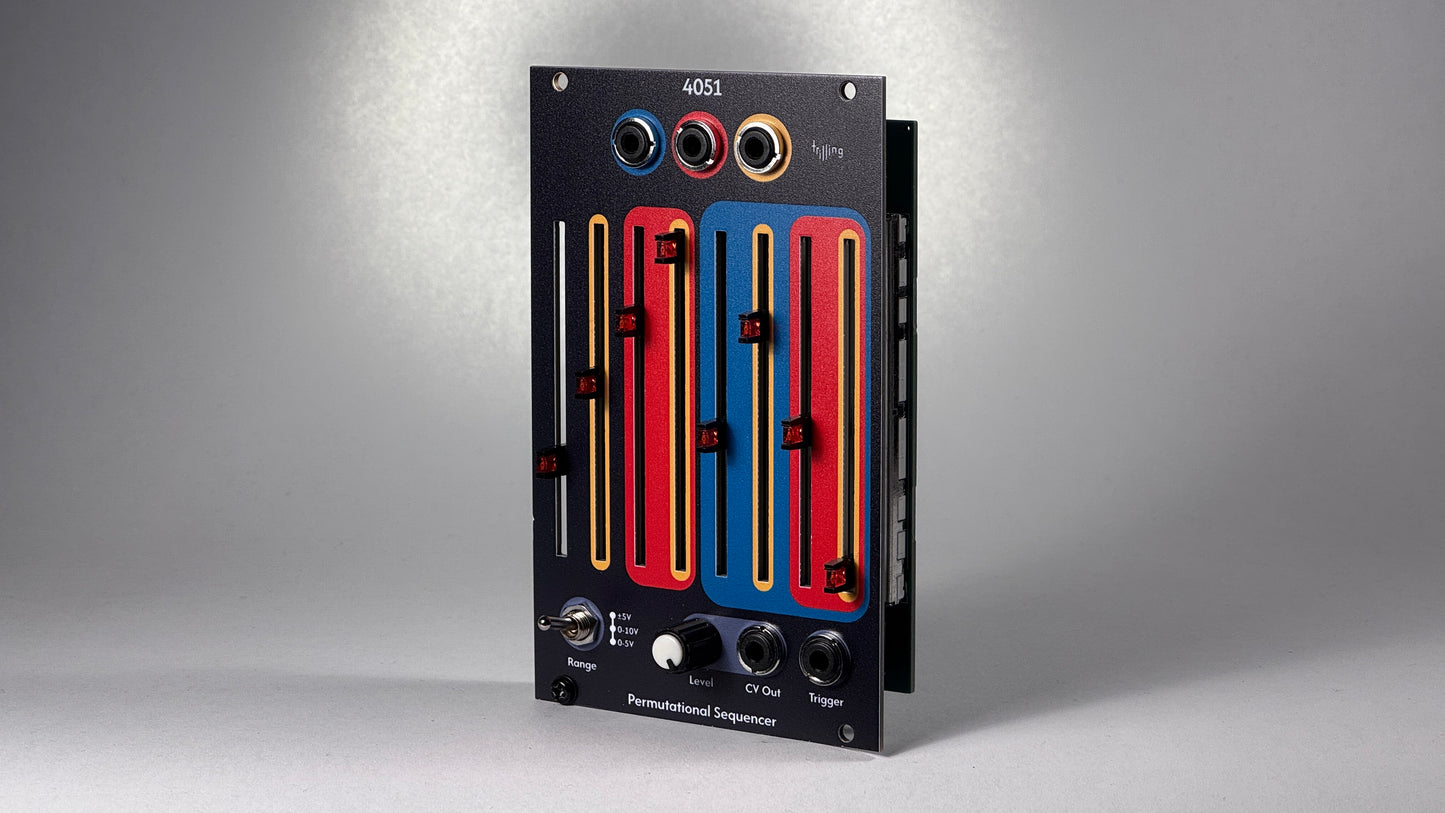

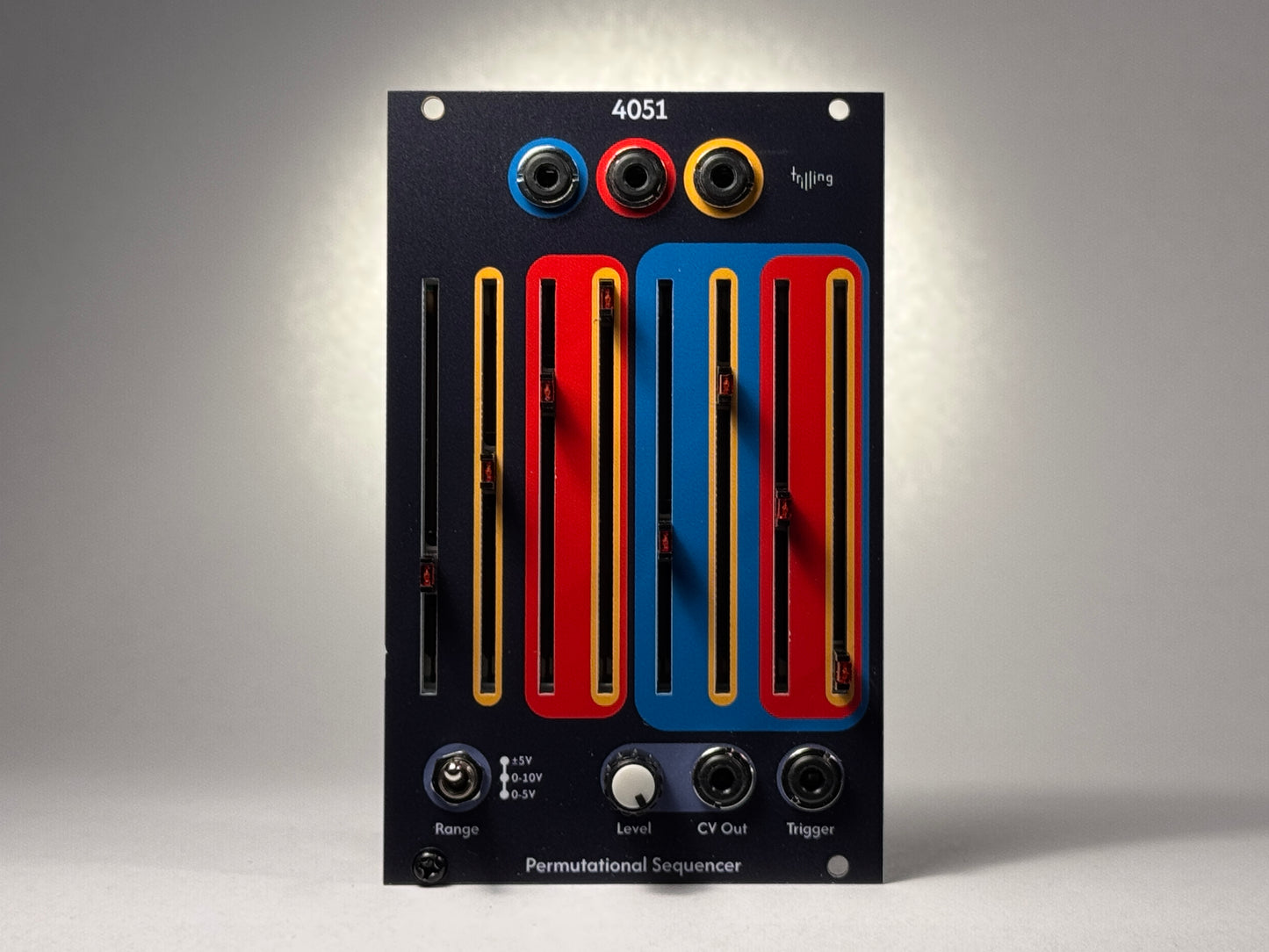

4051 - Permutational Sequencer

The 4051 Permutational Sequencer turns simple gate signals into complex sequences. This sequencer uses three gate inputs as a binary number, which determines the order of its steps.

• Dynamic Variations: Feed it three successively halved standard notes like quarter, eighth and sixteenth notes for a standard left-to-right sequence. But the real magic happens when you replace any of the inputs with another signal, resulting in limitless creative possibilities and rhythmic variation.
• User-Friendly Design: Color-coded inputs make it easy to understand and control.
• CV Output Range and Level Options: The CV output range is adjustable via a dedicated switch, allowing you to tailor it to your specific needs. Additionally, the level knob provides precise control over attenuation for fine-tuning the signal.
• Trigger Output: Each time the sequencer advances to a new step, a trigger pulse is sent from the trigger output, making it easy to synchronize with other modules or external gear.

This sequencer is a powerful tool for creating evolving patterns that push your creativity to new heights.

Tech specs:

• Width 16hp (80.9mm)
• Depth 35mm (including power cable)
• Standard 16 pin Eurorack power connector (cable included)
• Standard 3.5mm TS jacks
• Power 35mA 12V, 10mA -12V
