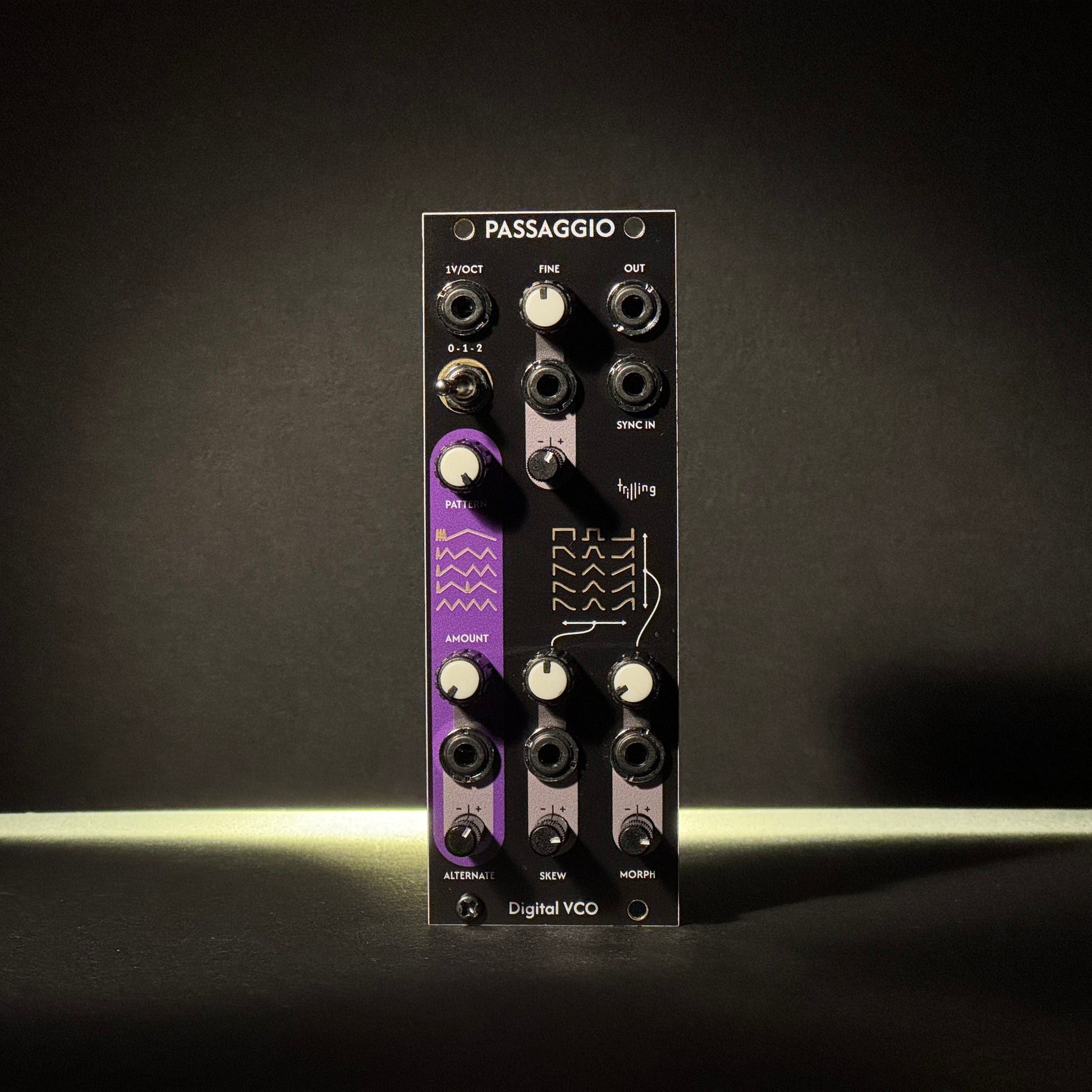

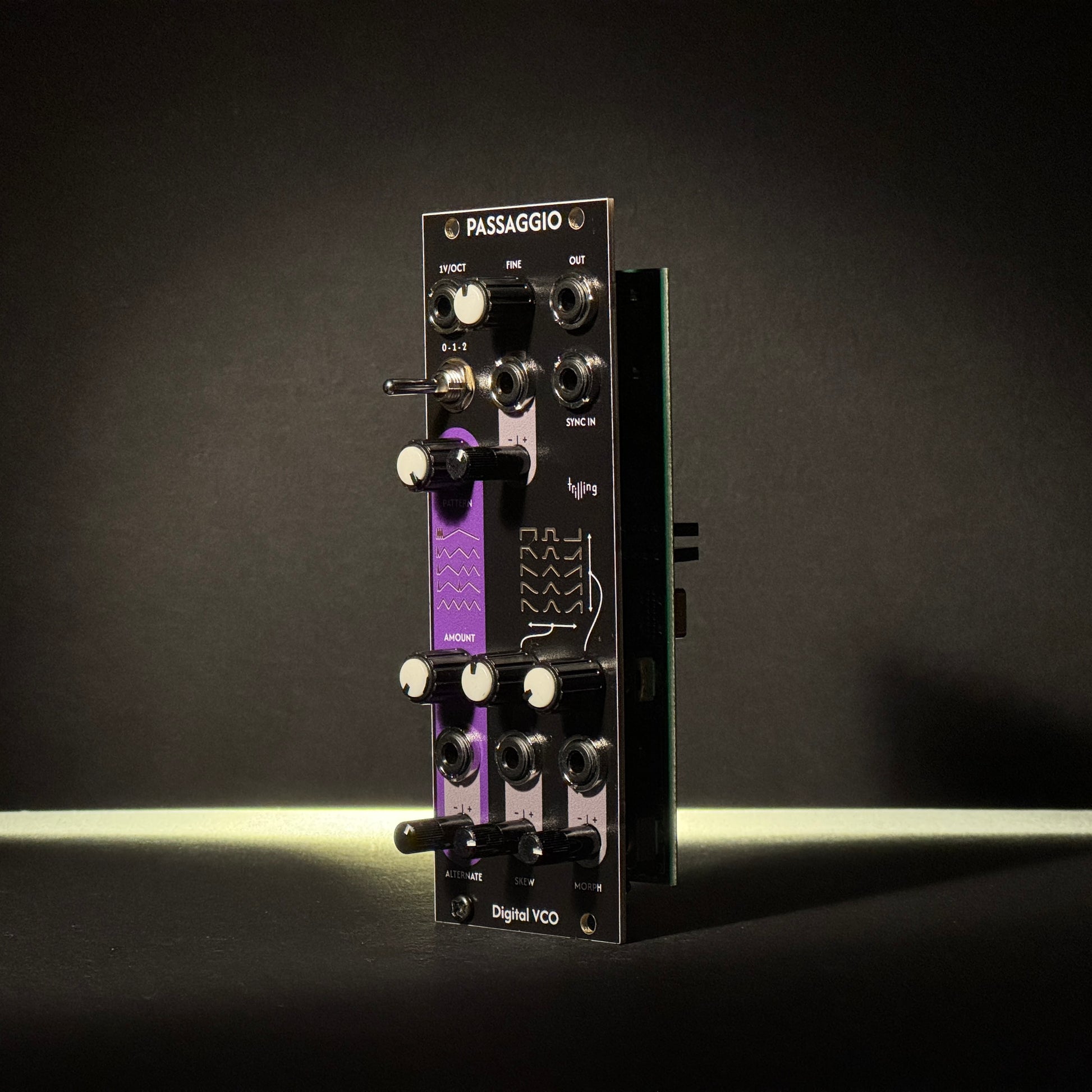

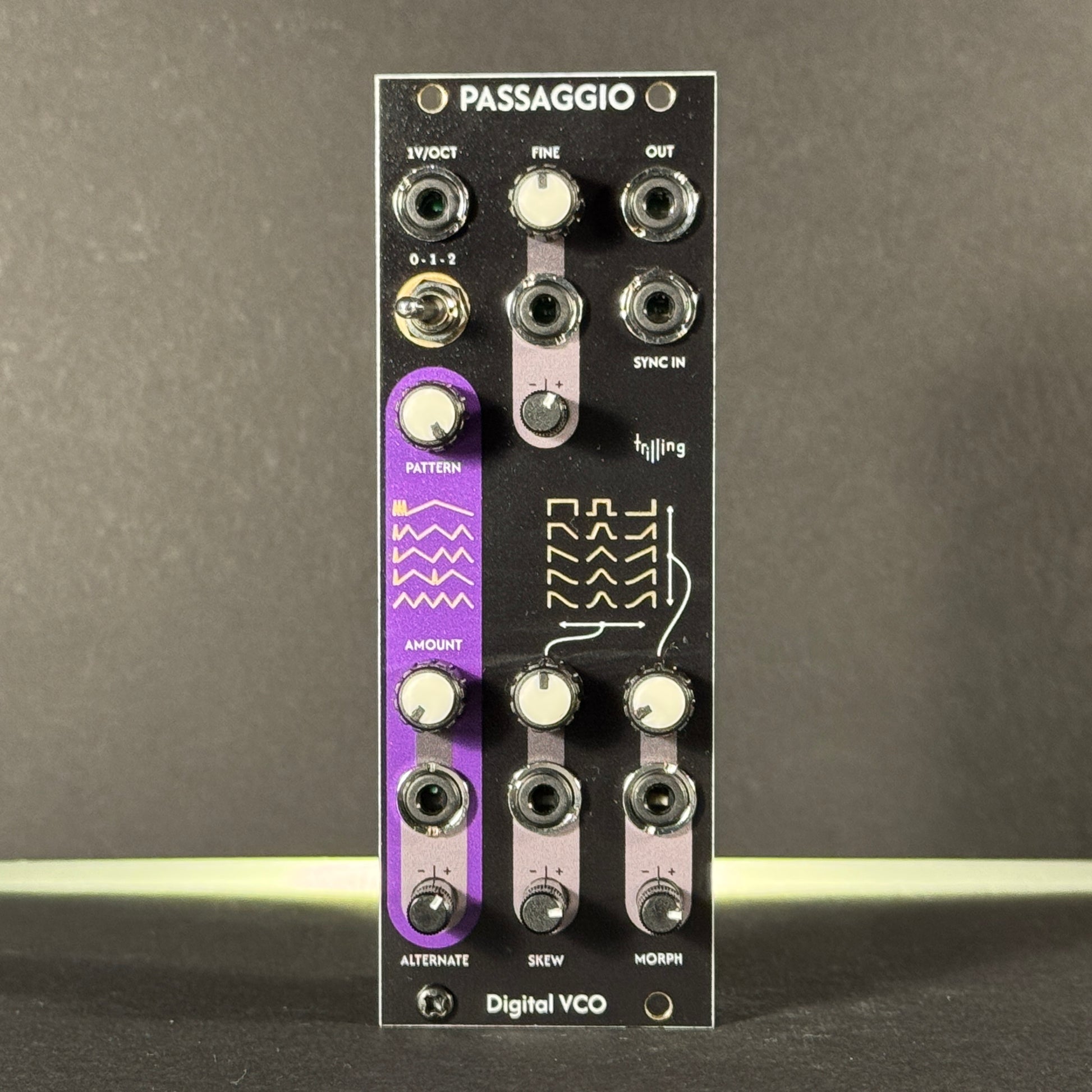

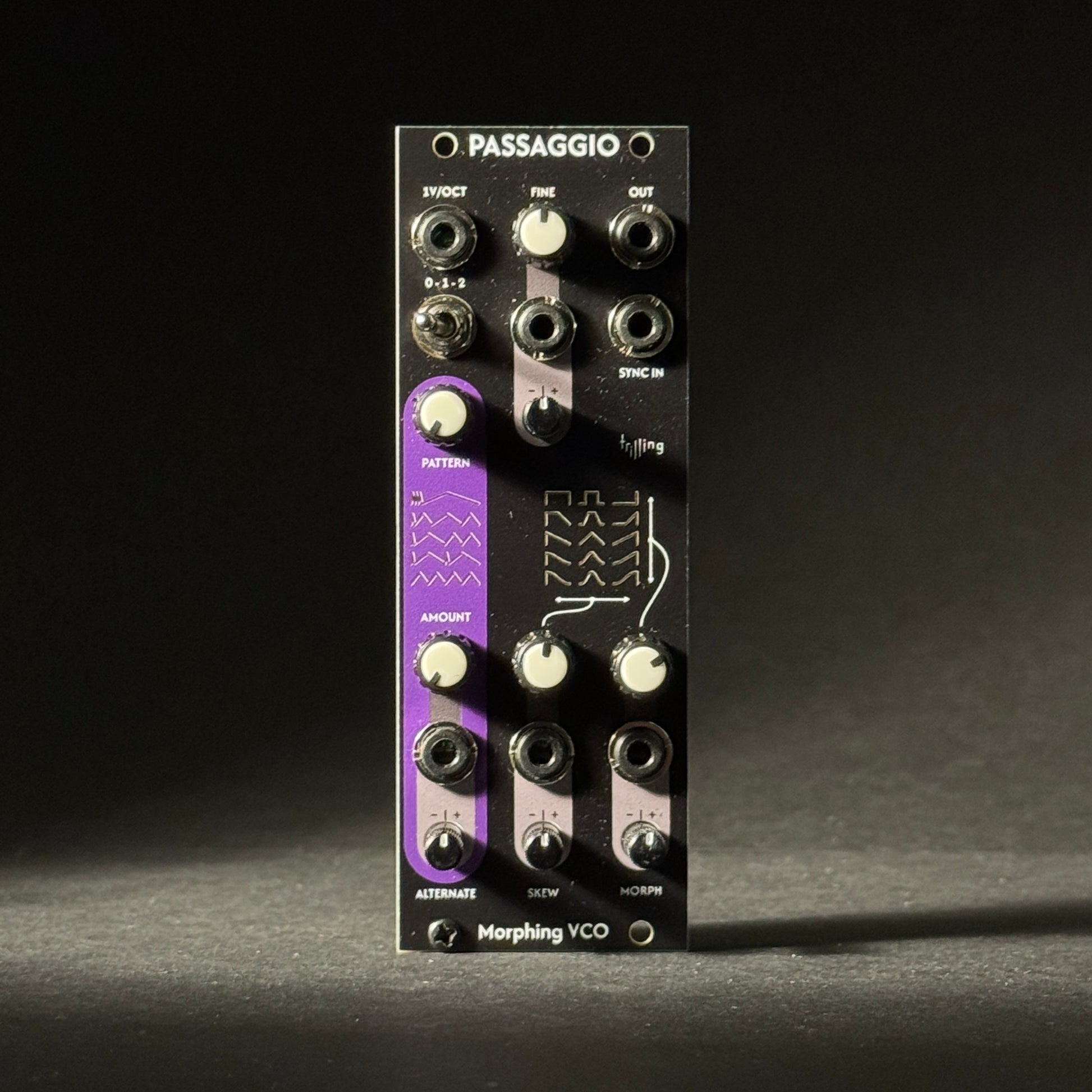

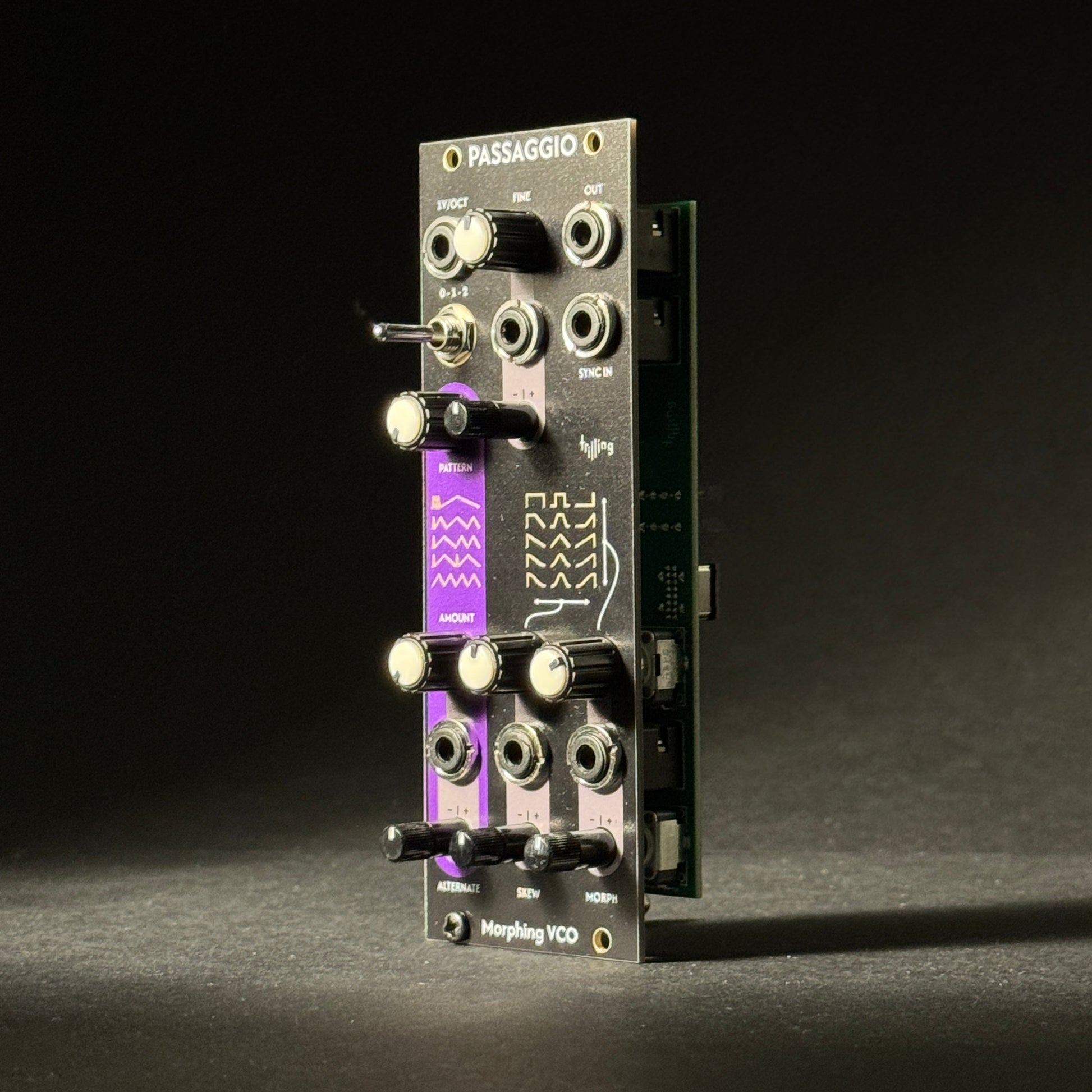

Passaggio - Digital VCO

A digitally generated voltage-controlled oscillator featuring:

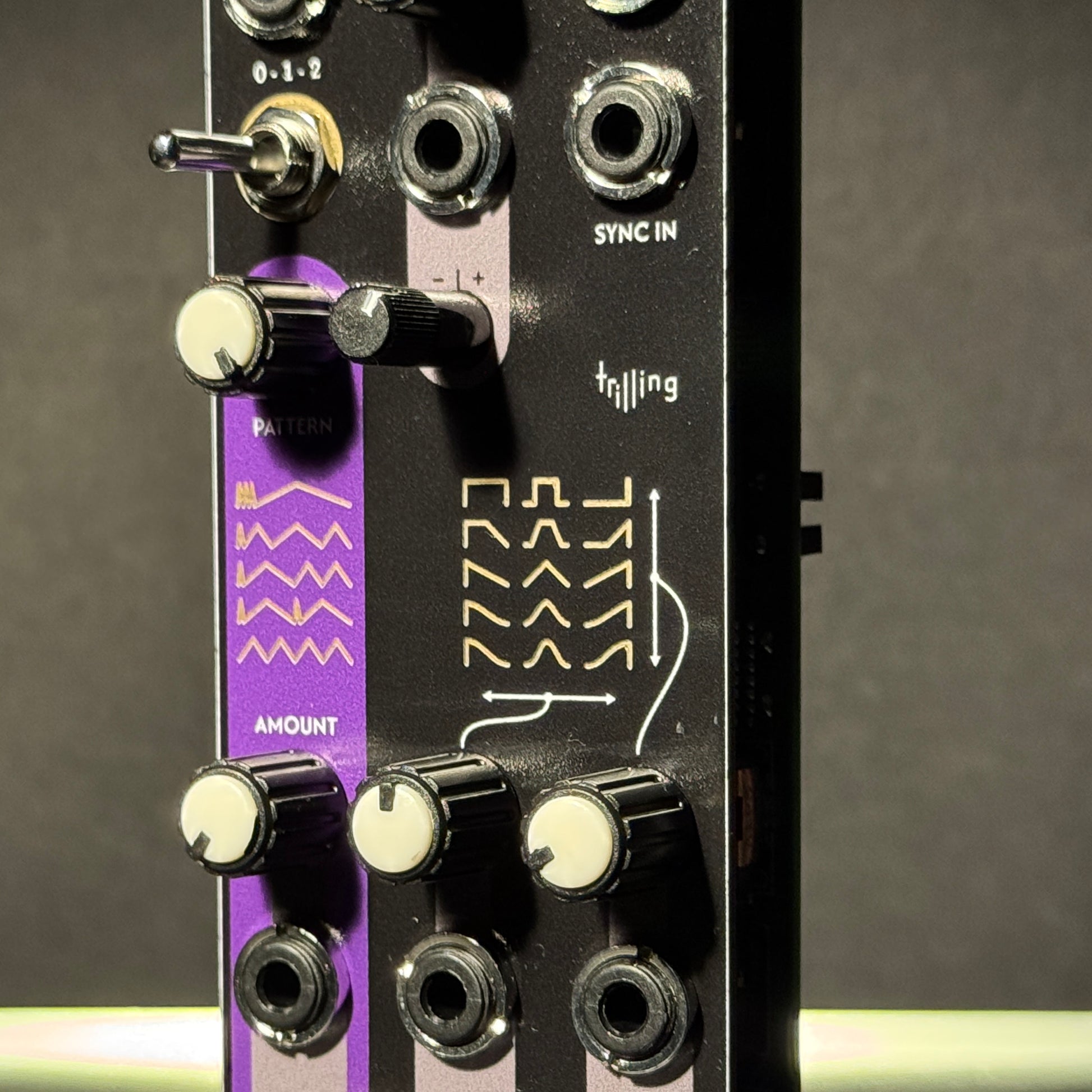

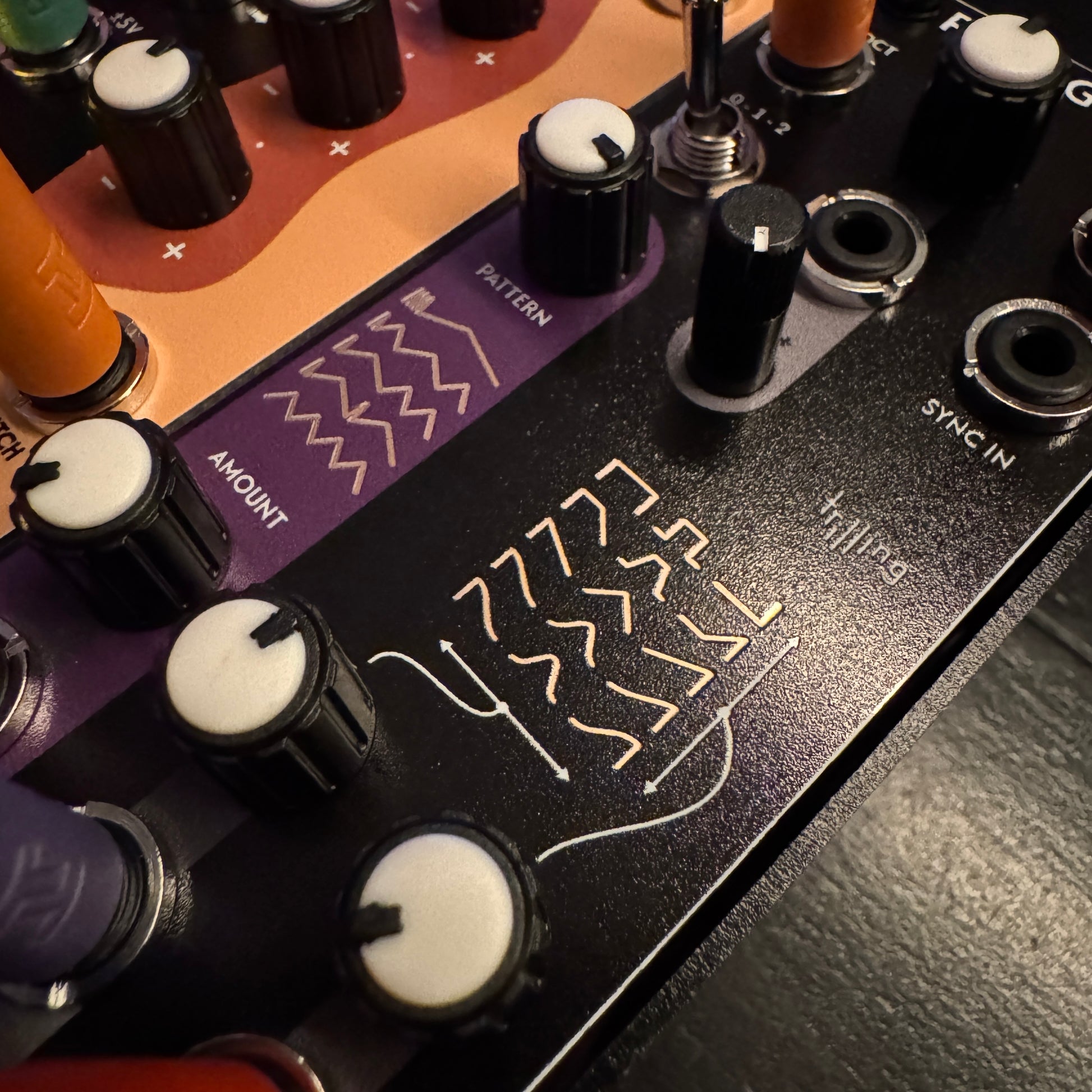

• Dynamic 2D waveform control, providing continuous access to all core wave shapes and extended variations. Controllable via front-panel controls and bipolar CV inputs with built-in attenuverters.

• Unique alternating cycle-length patterns, creating clean yet harmonically rich distortion by varying individual cycle lengths while keeping the overall period stable.

• Standard 1 V/oct pitch input, an adjustable fine-tuning section, and a true hard-sync input for precise, musically stable synchronization.

• Optional MIDI input via a dedicated extension module.

Tech specs:

• Width 9hp (45.5mm)
• Depth 35mm (including power cable)
• Universal 10/16 pin Eurorack power connector (16 pin cable included)
• Standard 3.5mm TS jacks

• Power 90mA 12V, 10mA -12V
